How to Pair and Connect an Appion Digital Device on iOS

The Appion Digital Device you wish to pair must be on while performing the following steps. If you are using an early model device like the PT500/800 or AV760, the Bluetooth icon must be flashing on the Appion device display. A flashing Bluetooth icon indicates the device is in pairing mode. For any newer devices, simply turn the device on to initiate pairing mode.

Step 1: Open Appion Central

On your device, locate the Appion Central app, then tap on the icon to open.

screenshot of step 1 instructions

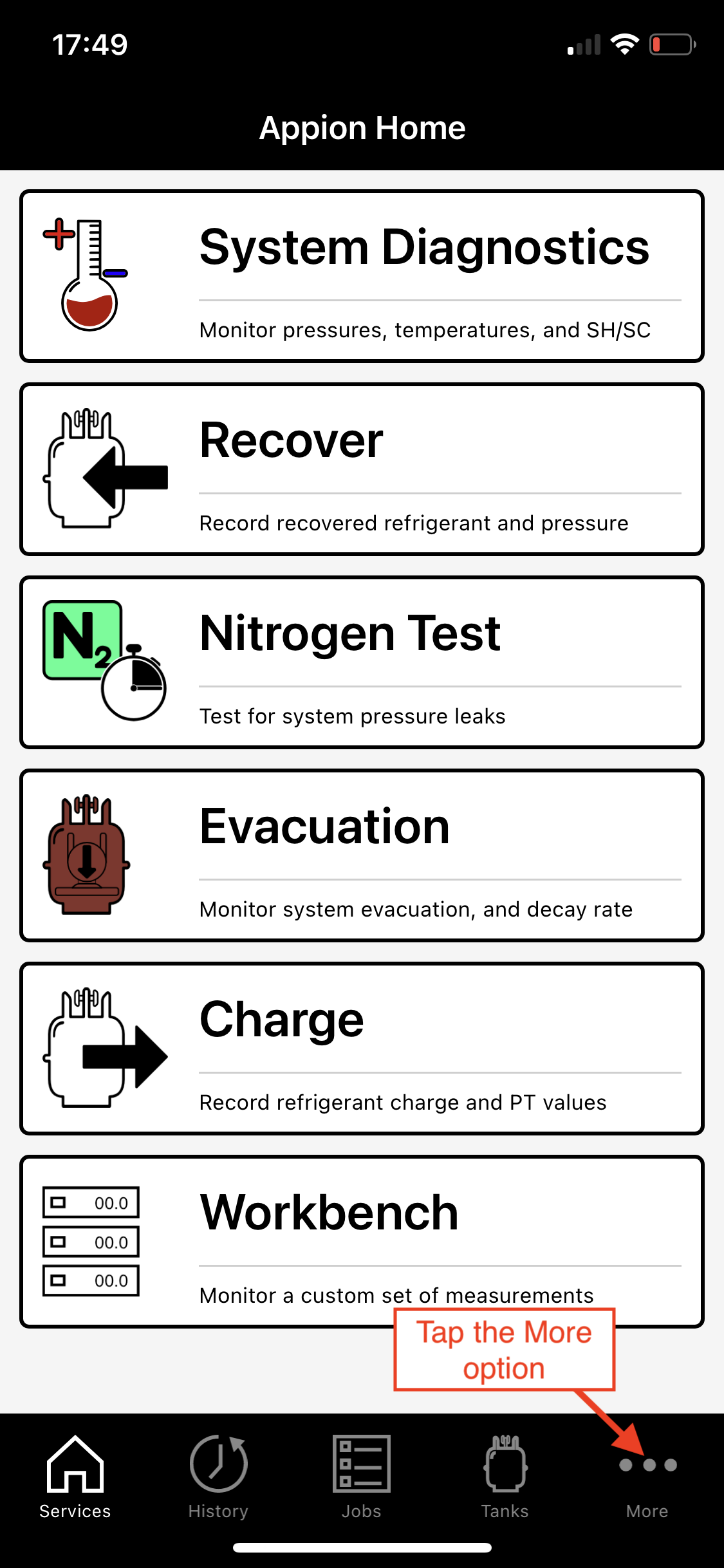

Step 2: Navigate to the More Menu

From the home screen, tap More located in the lower-right corner.

screenshot of step 2.1 instructions.

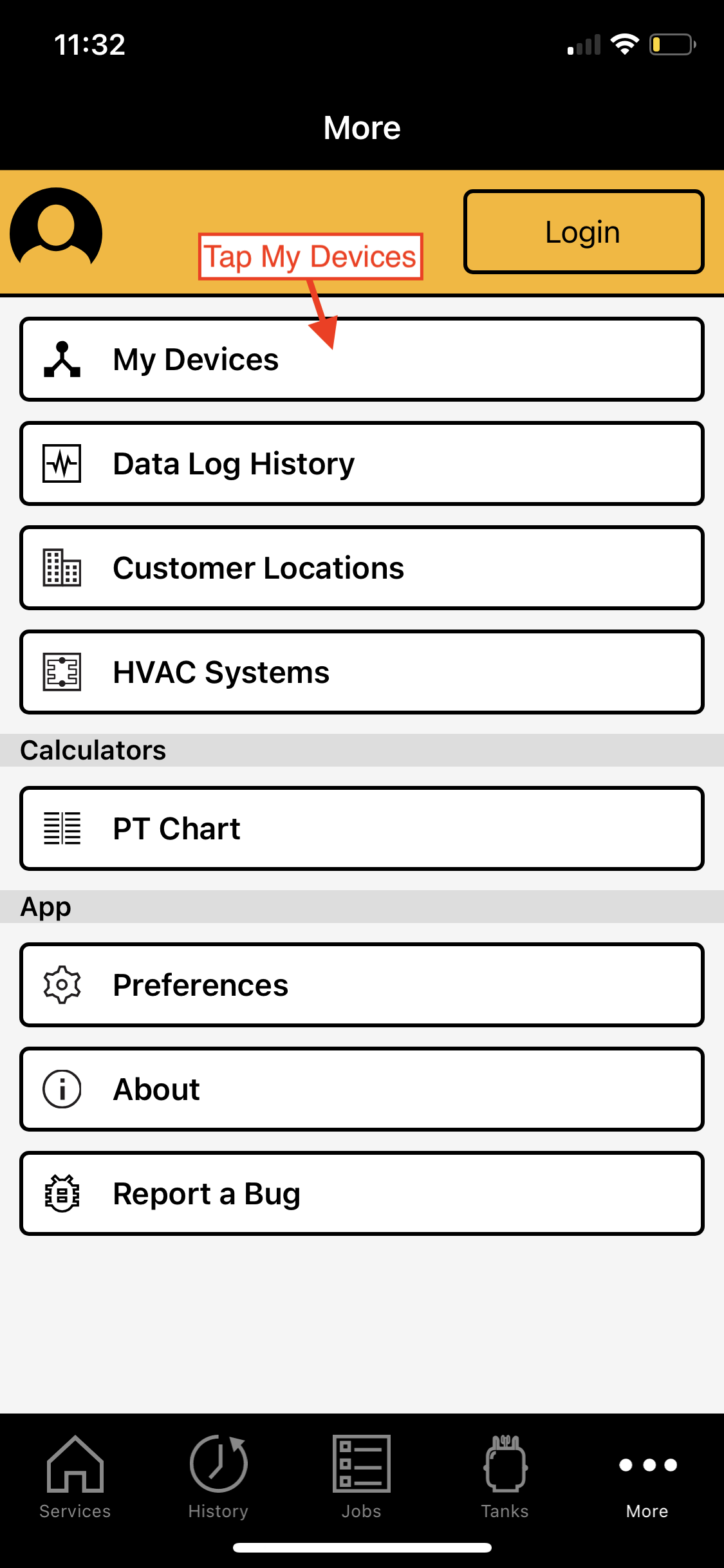

Step 3: Open My Devices

Tap My Devices to open.
Please Note: You can also access My Devices from any service screen by tapping the Click to add measurement source icon. Using this method will automatically add the device to a service after being connected.

screenshot of step 3 instructions

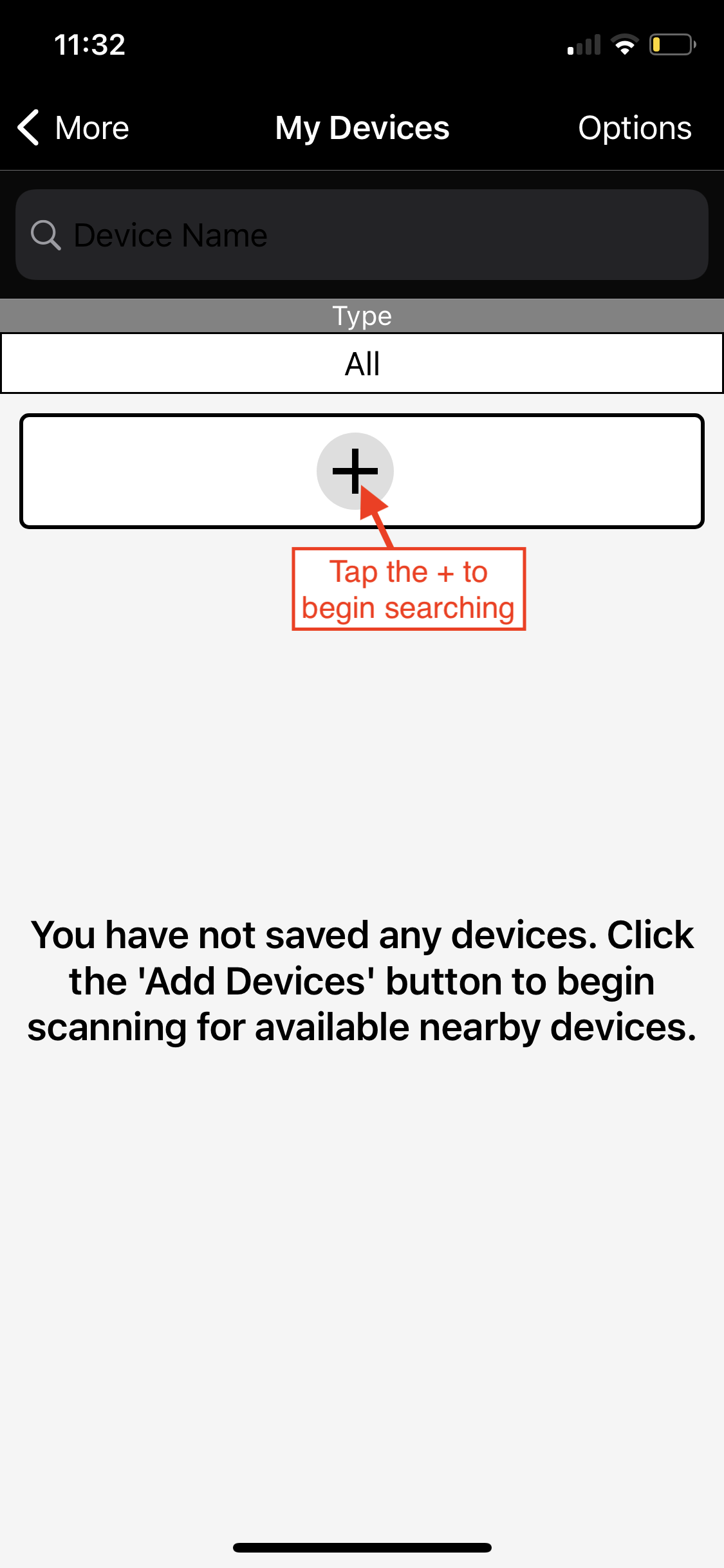

Step 4: Tap the + Icon

Tap the + icon to open the New Devices screen and begin searching for discoverable devices.

screenshot of step 4 instructions

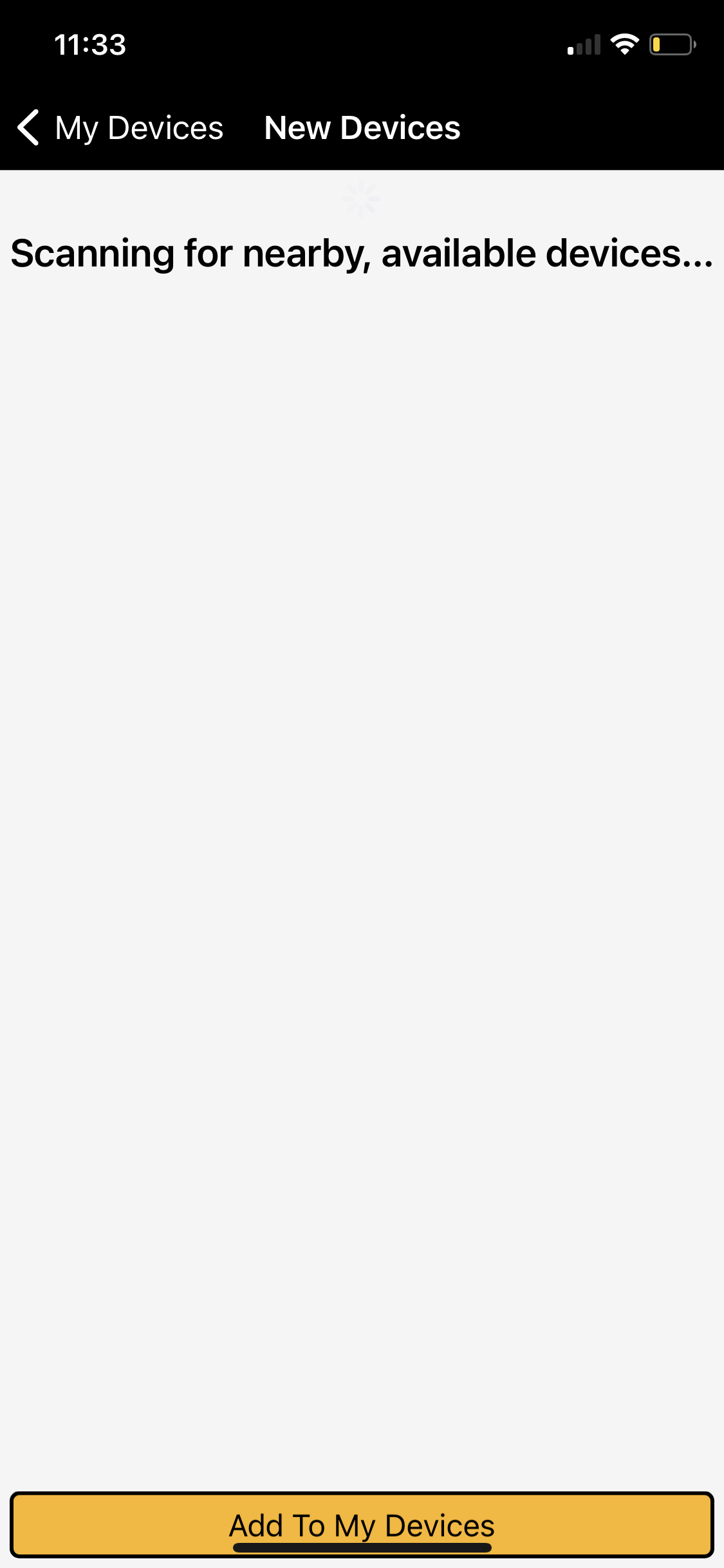

Step 5: Wait While Appion Central App Scans for Available Devices

The Appion Digital Device you wish to pair must be on while performing the following steps. If you are using an early model device, like the PT500/800 or AV760, the Bluetooth icon must be flashing on the Appion device display. A flashing Bluetooth icon indicates the device is in pairing mode. For any newer devices, simply turn the device on to initiate pairing mode.

screenshot of step 5 instructions


Step 6: Select the Device or Devices You Wish to Pair

Once the discoverable devices appear, tap on the device(s) you wish to add. A checkmark will appear on selected devices.

screenshot of step 6 instructions

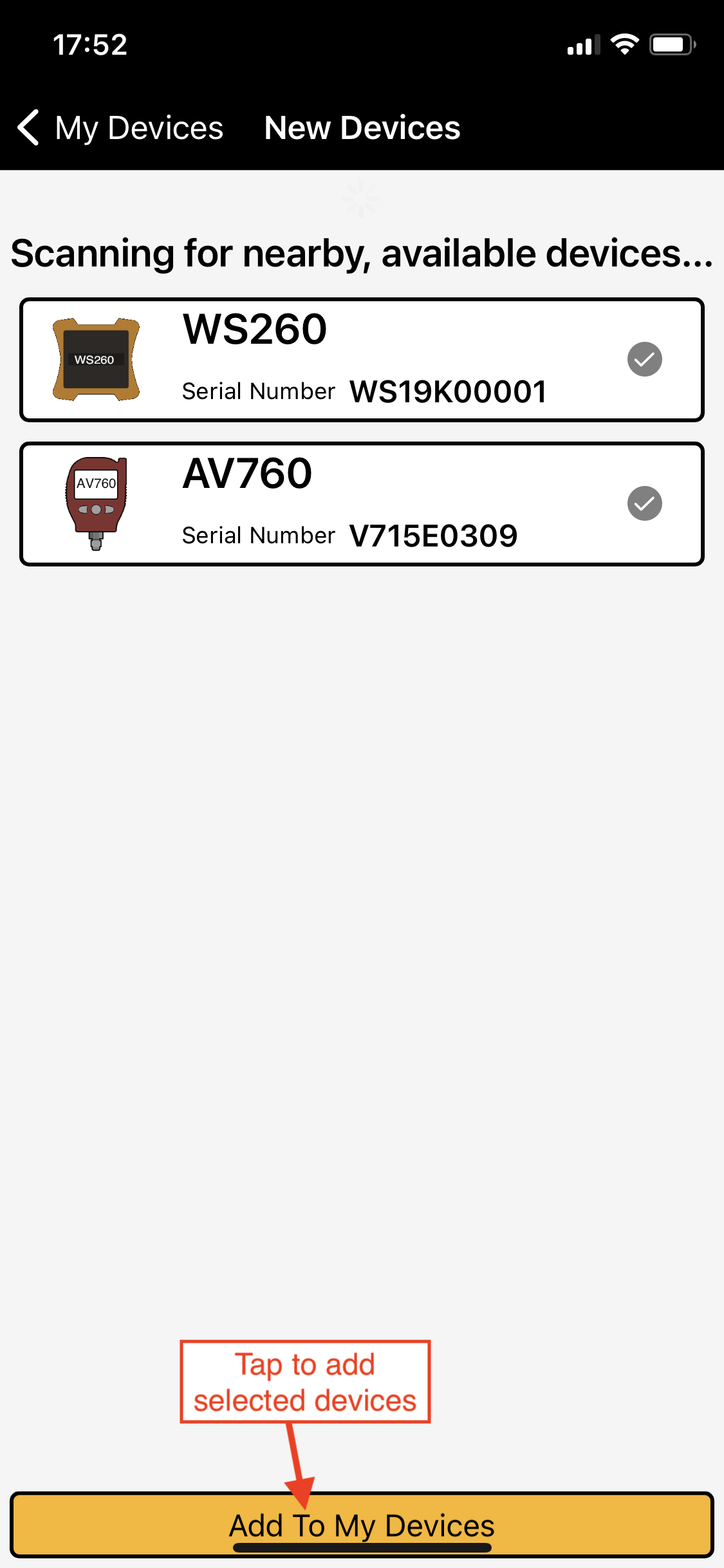

Step 7: Add the Selected Device(s) to My Devices

Tap Add to My Devices to complete pairing. You will then be redirected to the My Devices screen.

sscreenshot step 7 instructions

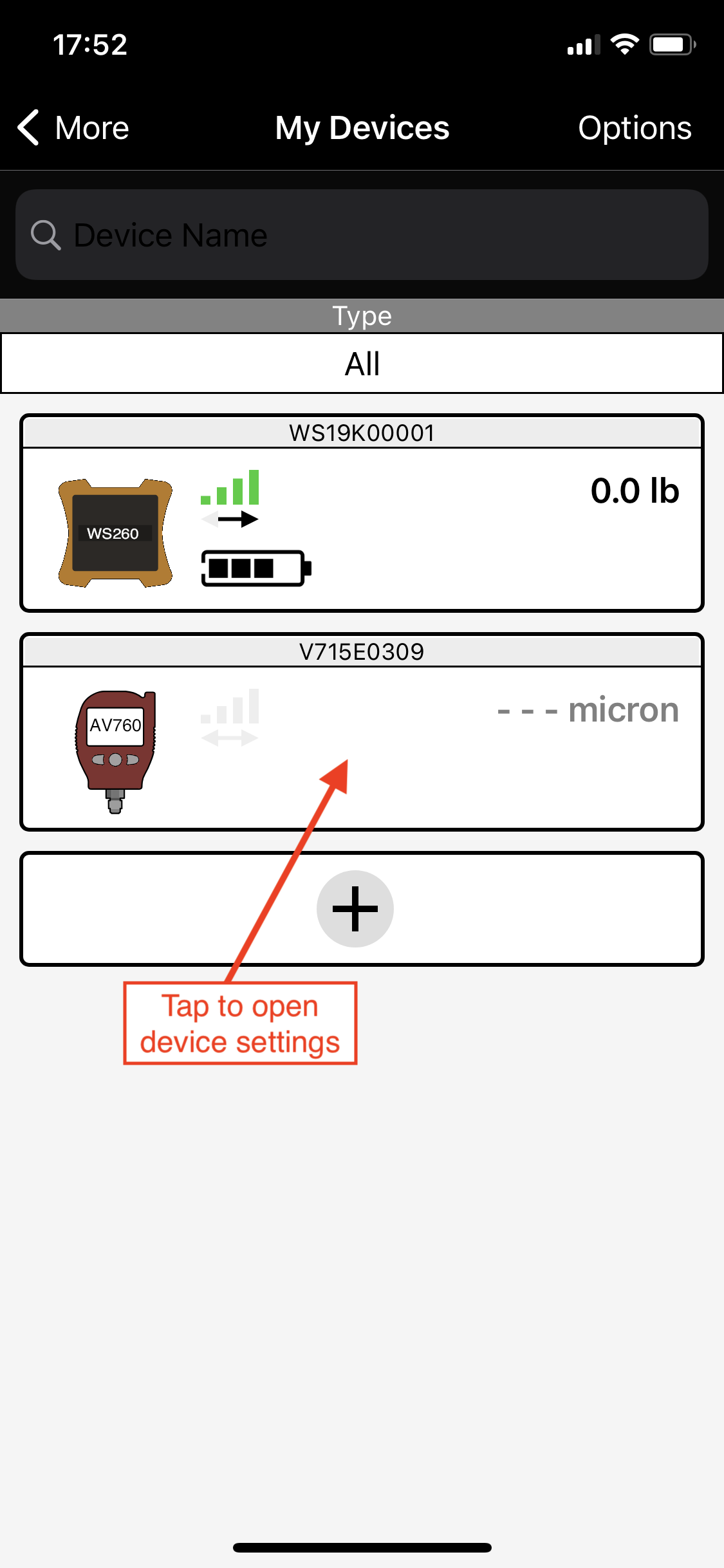

Step 8: Connect a Newly Added Device for 2-Way Communication

The device(s) have been successfully paired and can now be connected for 2-way communication. Tap a newly added device in My Devices to open the settings screen.
Please Note: Early model Appion digital devices need to be connected to view the displayed values and gain 2-way communication. Late model Appion digital devices will display values in beacon mode with 1-way communication once paired. These devices can also be connected to gain 2-way communication.

screenshot step 8 instructions

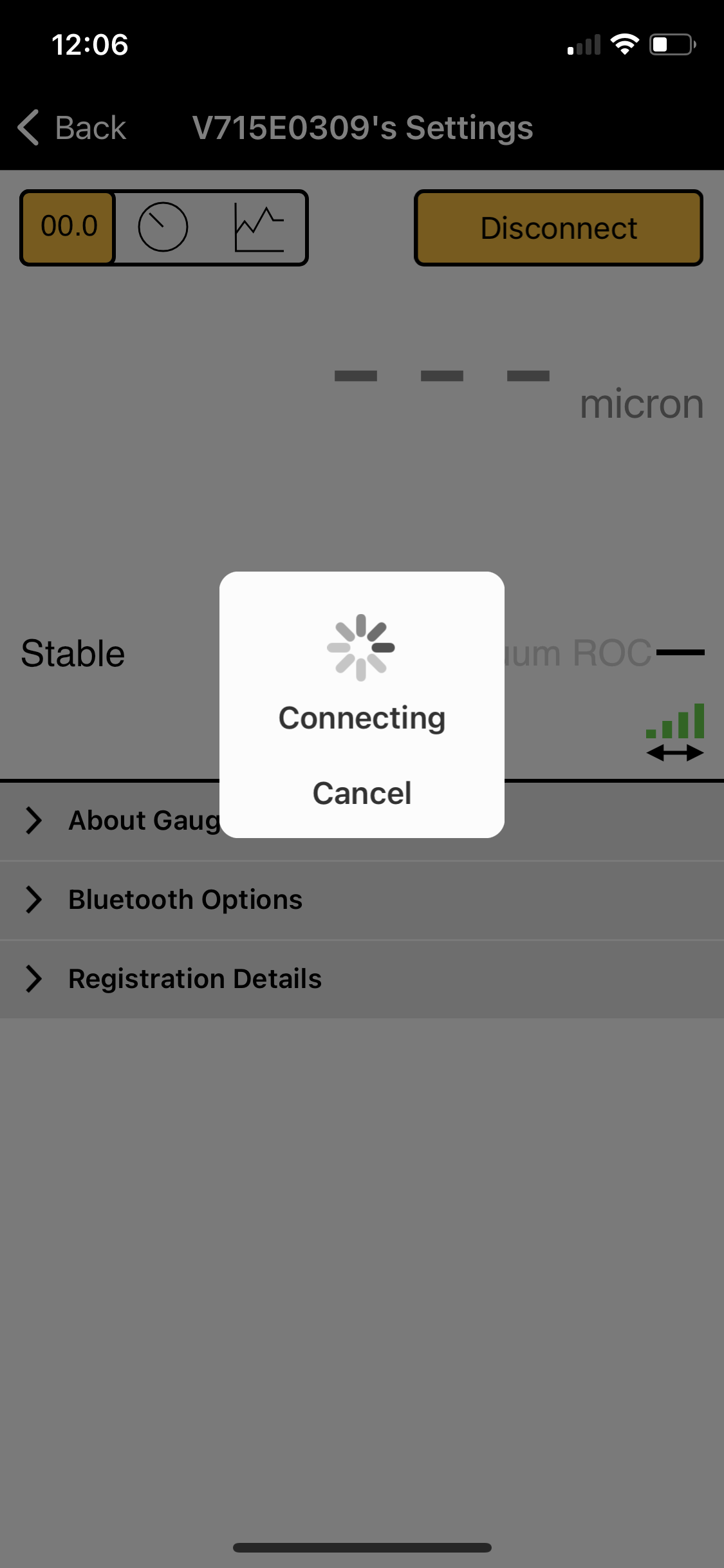

Step 9: Connect the Appion Digital Device to your iOS Device

Tap Connect to begin connecting. A pop-up prompt will appear while the device is connecting.

screenshot of step 9 instructions screenshot of connecting pop-up prompt


Step 10: Verifying a 2-Way Connection is Successful

If the 2-way connection is successful, the signal strength indicator with 2-way arrows will appear. After a device has been successfully connected, you may now add them to services.

screenshot step 10 instructions


Next: How to Add an Appion Digital Device to a Service >>
